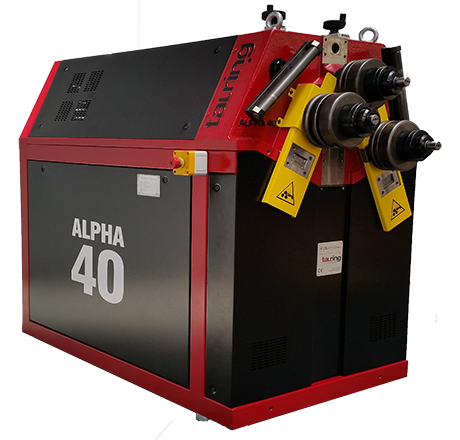

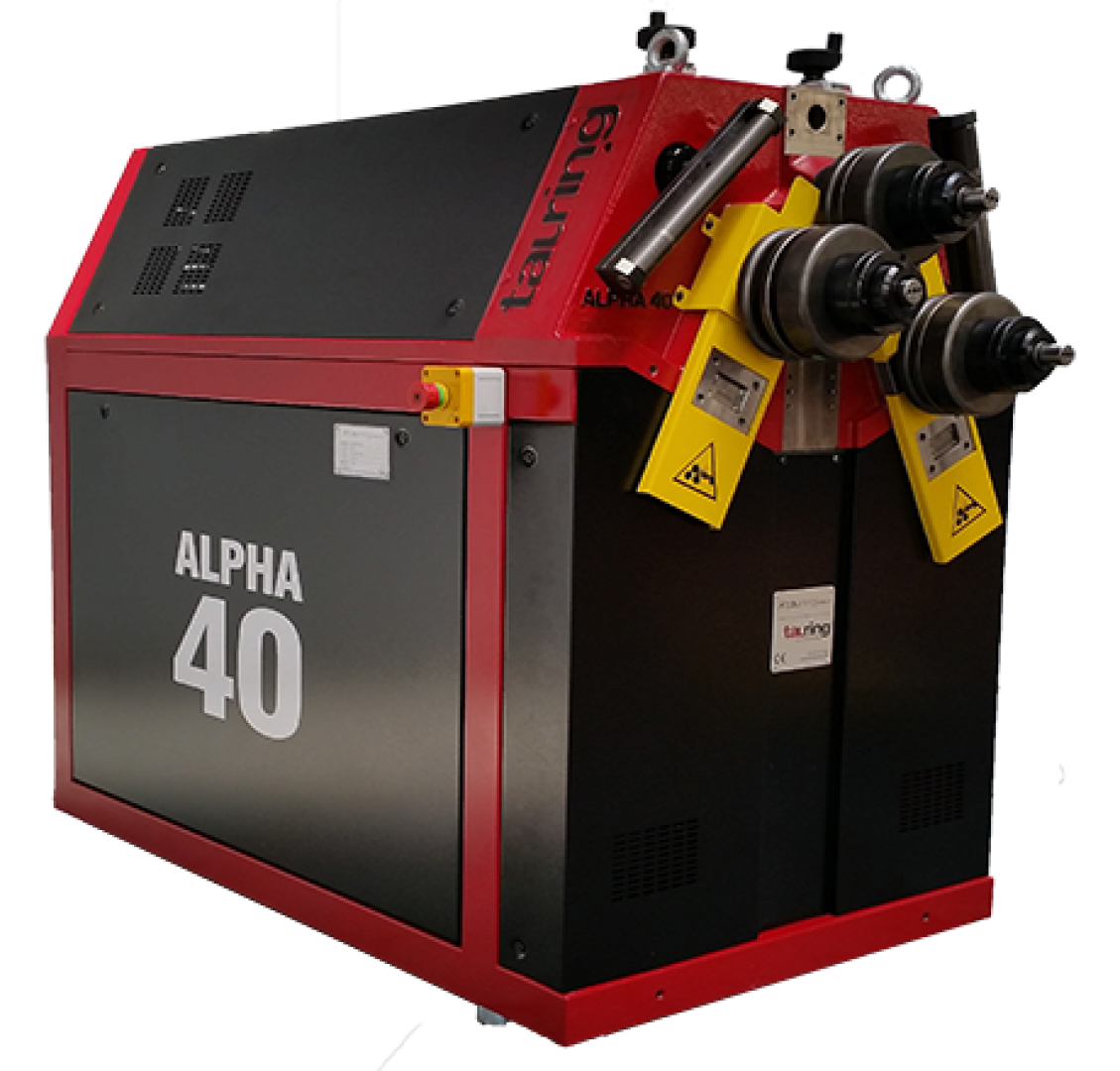

Alpha 40
With the ALPHA series the bending machine undergoes a deep transformation. Compared to the classical orbital machines, in fact, the straight converging guides system gives a greater structure stiffness and a better material feeding. The new technology assures and improves the performances declared by the competitors, with a significant consumption reduction.
Versions
Versions
- H2:Lower rolls hydraulical adjustment with mechanical endstroke.
- PQi: Equipped with PQI control, the Intelligent Quote Positioner for the predetermination of the bending radii.
- CNC4/3: Equipped with CNC4/3 control, Computerized Numerical Control with three axis able to automatically managed joints and bending radii predetermination
- CNCi: Equipped with CNCi control, the Computerized Numerical Interpolated Control for the predetermination of the bending radii, able to manage untill 1000 steps of a virtually infinite number of storable programms
Technical Data
Application Fields
- Driving rolls:3
- Shaft speed (min-1): 7,7 – 15,6
- Weight (kg): 490
- Total power (kW):4,4
- Working height (cm): 93
- Size (cm): 62x115x110
| in mm | Min. R. | Tools | |
 | 40x40x4 45x45x5 | 300 600 | ST – AI ST - AI |
 | 50x1,8 60x2 | 700 800 | RT RT – SI |
 | 40x20x2,5 50x25x2,5 | 600 700 | RQ RQ – SI |
Application Fields
- Items for farming and breeding industry
- Items for street furniture
- Items for blacksmith
- Leight-weight metal framework
- Environment, food and water treatment industry
- Interior design
- Bathroom and sport equipment
- Toy and leisure industry
- Automotive, cycle and motorcylce industry
- Road signs and lighting industry
- New energies
- Conditioning
